EDS Solidedge三維造型分析

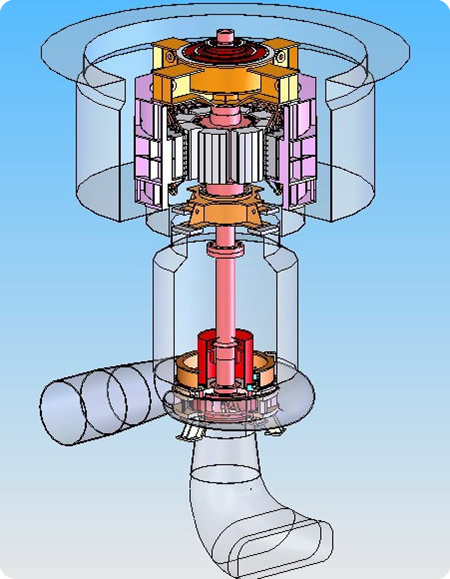

 ⑴ Adopting the 3-D modeling design for hydroelectric generating set

      During the design procedure of the hydroelectric generating set, 3-D model can generate a design drawing with sense of reality though describing the design object with 3-D solids form. This kind drawing can clearly show the design, verify the design and easily find out the defects.

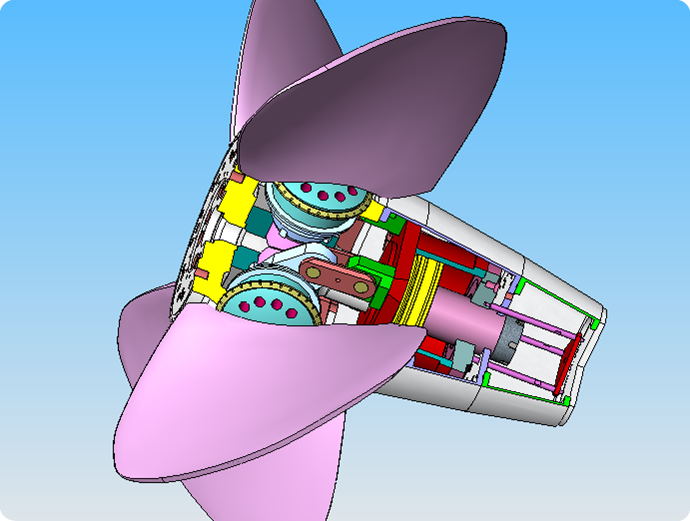

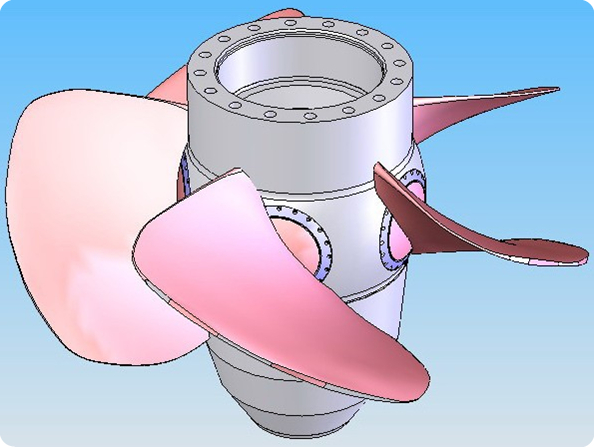

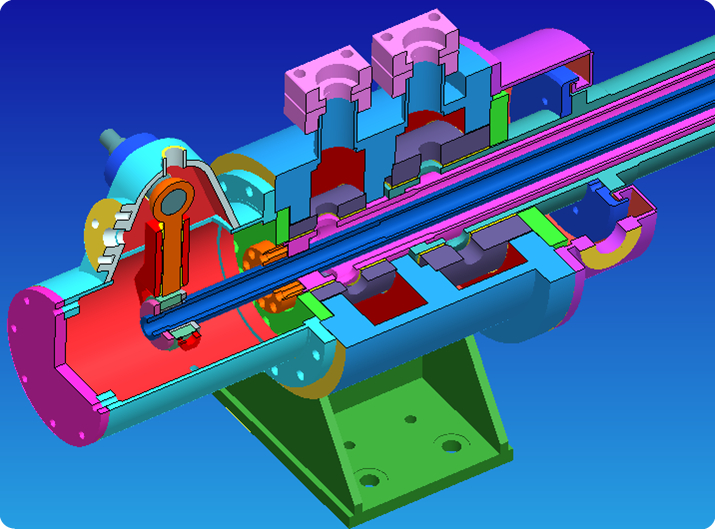

 ⑵ carry out the moving simulation and interference analysis for complex parts

      The 3-D moving stimulation and interference analysis will be done for the runner, gate operating mechanism and other complex parts of turbine. These analysis results will be used to instruct the design and manufacture.
